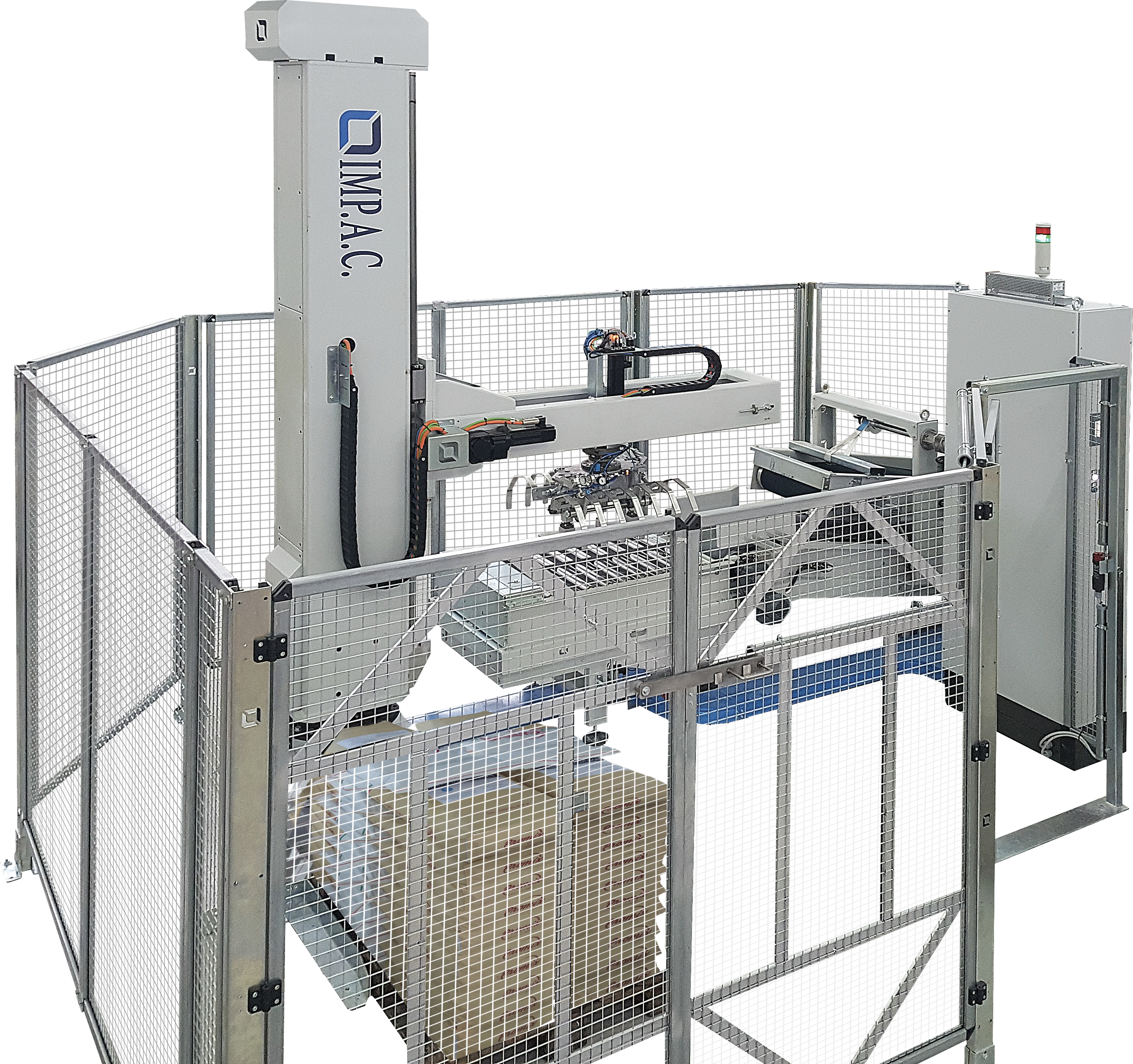

IMP.A.C. ROBOTEX 127 APT

Automatic mono-column palletizing system with pallet at the ground

Max Production: 300 bags/h

CONTACT US

The IMP.A.C. ROBOTEX 127 APT has a max production of 300 bags/h. The bag gripping system with total wrapping gripper assumes great importance, which allows the handling of any type of bag (paper, jute, plastic, valve, sewn or electro-welded), in particular for difficult bags, for example half-empty bags. o bags containing products at the limit of viscosity (water), complete with the device for pressing the bag on the pallet. The bag coming from an upstream line is pressed to be made uniform and compact, then sent to a station, to be picked up and transferred onto the pallet. The ROBOTEX IMP.A.C. 127 APT consists of a mechanical hand which is movable both in a rotary and translational direction and adaptable to any type of bag. The whole is mounted on an arm with vertical and rotational movements with respect to the central axis of the machine. We have created a condition of total mobility in all directions. A programmable modular system (PLC) coordinates all the movements of the machine which can be programmed to palletize bags of different sizes, formations and number of layers.

Bag size
Max. 1200 x 600 x h. 250 mm
Min. 500 x 300 x h. 80 mm
Bundle size
Max. 1300 x 1200 mm
Min. 1000 x 800 mm
Max layer size
Max. 1550 x 1300 mm
Standard full pallet height
1600 mm
Max weight of full pallet
2000 Kg
Capacity
300 bags/h
Installed power
8,5 KW
Air pressure
6 bar
Compressed air consumption
80 Nl/min
Control voltage
24 V
Indicative weight
5500 Kg

– components and compliance with ATEX standards

– thick painting with special paints- machine structure entirely in stainless steel

– anti-corrosion components

– wider or taller machine for pallets with non-standard dimensions

– flap positioning device between the layers

– palletization on moplen plastic sheet

– automatic press adjustment

– remote teleservice module
